MXG 1.2 Strada
MXG 1.2 Strada
MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more.
Its strengths are the compactness, which makes MXm perfect to be fit into any kind of car and bike, and its plug-and-play usage: complete but simple, MXm is the perfect device for both Pro and Amateaur racers.
A wide range of data sources
MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.
Two power outputs
MXm features two power outputs
that can drain up to 15 A each.
The two power outputs can be configured in order
to be turned on/off depending on the value
of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights,
to activate/de-activate a cooling fan
or circulation pumps, etc. when
a certain event happens.

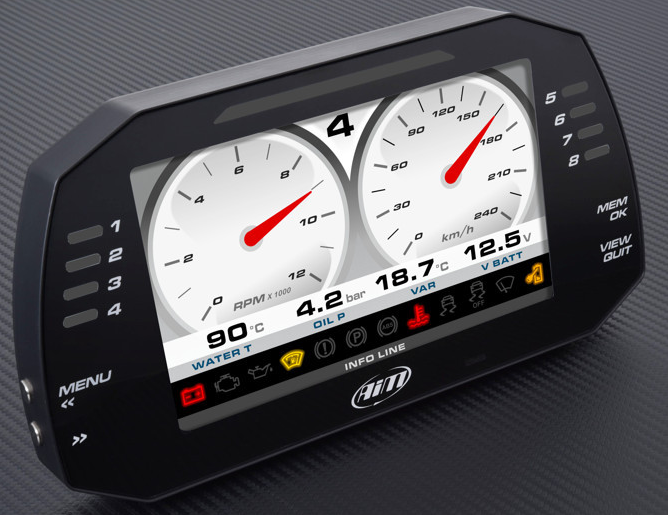

Sharp Liquid Crystal
MXm features a high contrast LCD display, with an outstanding black to white ratio.
The wide 268x128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels.

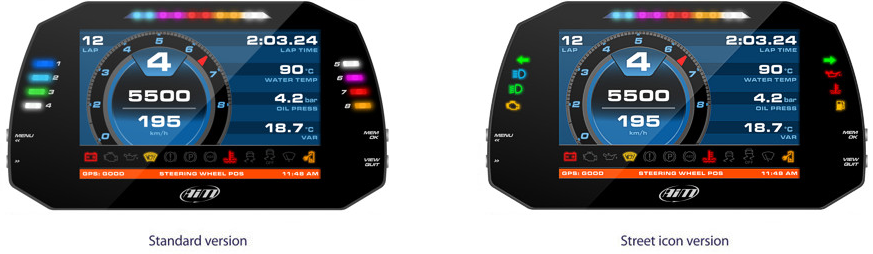

The screen can be backlighted in one of the seven available colors:
Data recall on screen
At the end of each session,
you can recall the summary of your best laps,
with max/min RPM, speed and temperatures.
Choose your own
data layout
You can organize this huge quantity of data
defining your custom pages, choosing among
a wide library of page styles, defining which
data to be shown, their end of scale and
measure unit.
Wi-Fi connectivity
Makes it even more convenient
to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi
connection: no need to move your PC close
to the vehicle anymore, you can do it
from your van up to 50 meters away.

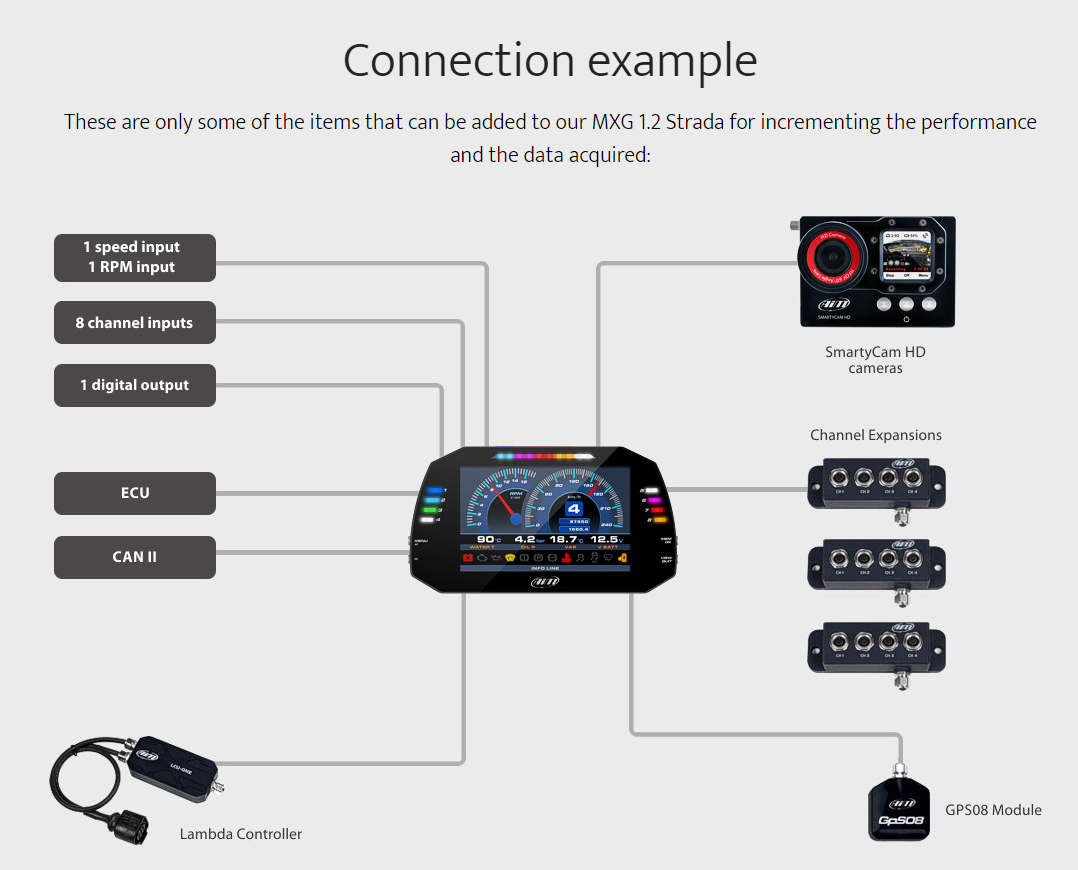

MXm can be connected to:
LCU-One CAN
LCU-One Lambda controller, to optimize your engine carburetion. LCU-One CAN
SmartyCam HD cameras
SmartyCam on-board cameras, for professional recording of your races, with your real-time data overlayed on videos. SmartyCam HD Rev.2
Race Studio 3,
the almighty software
Race Studio 3 is the true 'engine' of your MXm, as it will manage all your activities related to:
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
AiM LearnFast E-training Series
Check out how to use Race Studio 3 Configuration: Part 1 - Part 2
Analysis
With Race Studio 3 you can also analyze all data recorded by MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
