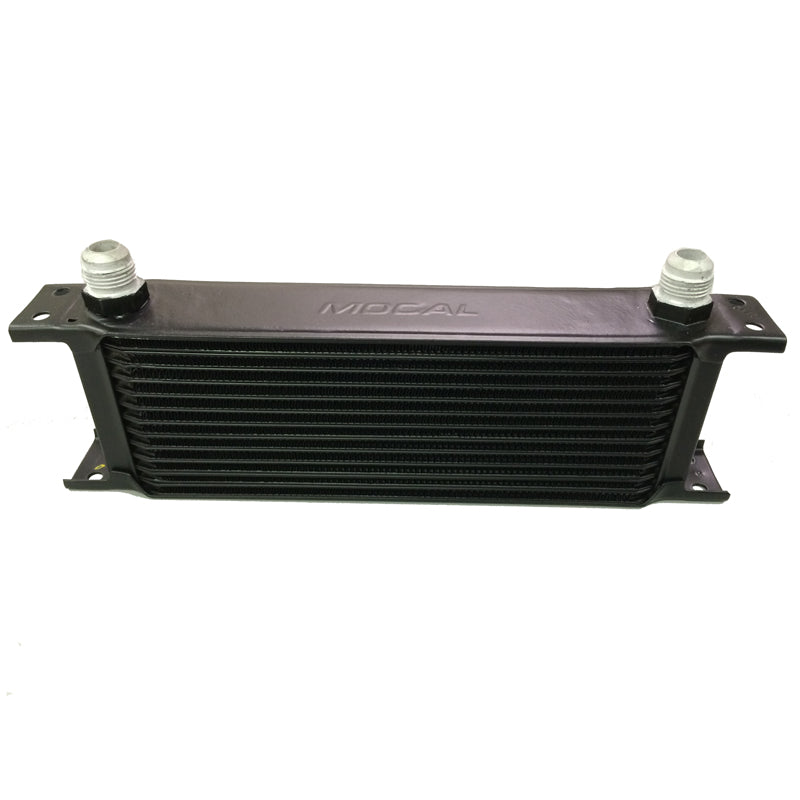

Mocal 19 Row, 235 Series Oil Cooler -06 thru -12 AN Fittings

Oil cooler construction utilizes a variable number of pressed plates forming oilways. These oilways contain "turbulators" to break down boundary layer effects in the oil flow, allowing for maximum heat dissipation without undue pressure build up. Oilways are interspaced with corrugations providing airways between the plates, and are also louvered to optimize heat transfer. The entire oil cooler is made from aluminum alloy braised into a one-piece unit. Each cooler is then tested by immersion to a pressure of 170 psi. Random coolers are put through even more exhaustive testing to ensure stability under all conditions.

Overall Dimensions: 13" Wide x 2" Core Thickness x 5-3/4" Height
Core Height: 5.78" (147mm)
Dry Weight: 2.8 lbs (1.24kg)
Fluid Capacity: 0.40 QT (0.38L)
